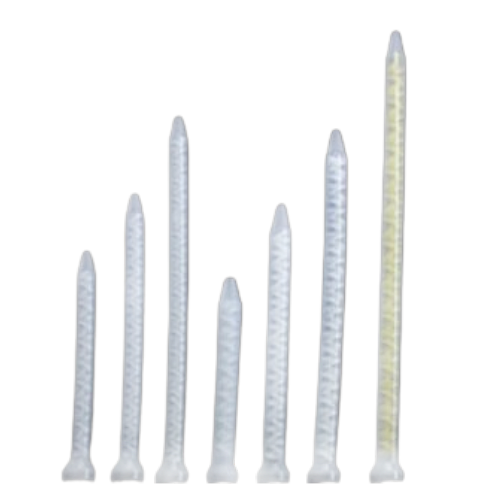

Static Mixers

Static Mixers

Static mixers are used to automatically blend the components of your material as they are dispensed. Due to their low cost the mixers may be discarded after use, saving time and money.

Mixer Sample Pack

Having a hard time deciding which mixer to purchase? Starting a project for the first time? Call us to order a mixer sample pack to find out which mixer is the best for your application.


MX1-432r

Standard Bell size, Luer lock tip available

PART#

Individual Price

Quantity 50

Quantity 250

Box Quantity

Overall Length

Number Of Elements

Inside Diameter

Outside Diameter

MX1-432SH $2.24 $1.79 $1.70 $1.53 (1500pcs.) 6.5" 32 0.187" 0.3"
MX1-448 $3.83 $3.06 $2.91 $2.61 (1500pcs.) 9.0" 48 0.187" 0.3"

MX1-624

$1.98 $1.58 $1.50 $1.35 (1500pcs.) 7.5" 24 0.250" 0.37"
MX1-632 $2.95 $2.35 $2.24 $2.02 (1500pcs.) 9.5" 32 0.250" 0.37"
MX1-632SH $3.65 $2.92 $2.77 $2.49(1500pcs.) 9.5" 32 0.250" 0.37"
MX1-648 $2.79 $2.23 $2.12 $1.90 (1000pcs.) 12.8" 48 0.250" 0.37"
MX1-656 $8.42 $6.74 $6.40 $5.75 (800pcs.) 14.9" 56 0.250" 0.415"
MX1-830lr

Standard Bell size, Luer lock tip available

PART#

Individual Price

Quantity 50

Quantity 250

Box Quantity

Overall Length

Number Of Elements

Inside Diameter

Outside Diameter

MX1-818 $2.12 $1.70 $1.61 $1.45 (1000pcs.) 7.25" 18 0.375" 0.51"
MX1-824 $2.18 $1.74 $1.66 $1.49 (1000pcs.) 9.125" 24 0.375" 0.52"
MX1-830 $3.24 $2.59 $2.46 $2.21 (500pcs.) 11.25" 30 0.375" 0.52"
MX1-840 $3.05 $2.44 $2.31 $2.08 (500pcs.) 14.125" 40 0.375" 0.52"
MX1-1024lr

Standard Bell size, Luer lock tip available

PART#

Individual Price

Quantity 50

Quantity 250

Box Quantity

Overall Length

Number Of Elements

Inside Diameter

Outside Diameter

MX1-1018 $3.32 $2.66 $2.53 $2.27 (500pcs.) 9.0" 18 0.500" 0.66"
MX1-1024 $3.58 $2.87   $2.44 (250pcs.) 11.625" 24 0.500" 0.66"
MX1-1030 $3.47 $2.78   $2.37 (250pcs.) 14.062" 30 0.500" 0.66"
MX1-1036 $4.82 $3.86   $3.29 (250pcs.) 16.6" 36 0.500" 0.66"
MX1-300-014lr

Standard Bell size, square mixer

PART#

Individual Price

Quantity 50

Quantity 250

Box Quantity

Overall Length

Number Of Elements

Inside Diameter

Outside Diameter

MX1-300-002 $1.31 $1.05 $1.00 $0.90 (1500pcs) 5.06" 24 0.208" 0.3"
MX1-300-006 $1.58 $1.26 $1.20 $1.08(1000pcs) 5.12" 24 0.295" 0.387"
MX1-300-374 $2.18 $1.74 $1.65 $1.48 (1300pcs) 5.88" 24 0.343" 0.465"
MX1-300-375 $2.70 $2.16 $2.05 $1.84 (900pcs) 7.44" 32 0.343" 0.465"
MX1-300-376 $3.26 $2.61 $2.48 $2.23 (800pcs) 6.88" 24 0.420" 0.55"
MX1-300-377 $3.53 $2.82 $2.68 $2.41 (600pcs) 8.75" 32 0.420" 0.55"
MX1-312-032lr

Standard Bell size, Two stage mixer for difficult to mix material

PART#

Individual Price

Quantity 50

Quantity 250

Box Quantity

Overall Length

Number Of Elements

Inside Diameter

Outside Diameter

MX1-012-832 $5.55 $4.70 $4.45 $4.20 (700pcs.) 16.125" 12-32 0.37-0.31" 0.55"-0.46"
MX1-312-032 $5.88 $5.03 $4.78 $4.53 (500pcs.) 19.5" 12-32 0.5-0.375" 0.67"-0.55"
MX1-442-C1Alr

Dynamic Mixer

PART#

Individual Price

Quantity 50

Quantity 250

Box Quantity

Overall Length

Number Of Elements

Inside Diameter

Outside Diameter

MX1-442-C1A $4.46 $3.61 $3.36 $3.11 (500pcs.) 6.5" 12 0.50" 0.65"
MX1-442-C1A-M $6.96 $6.11 $5.86 $5.61 (500pcs.) 6.5" 12 0.50" 0.65"
MX1-162A-639lr

Large Bell size

PART#

Individual Price

Quantity 50

Quantity 250

Box Quantity

Overall Length

Number Of Elements

Inside Diameter

Outside Diameter

MX1-162A-616 $8.31 $7.46   $6.96 (200pcs.) 15.0" 16 0.75" 1"
MX1-162A-623 $9.04 $8.19   $7.69 (100pcs.) 17.0" 23 0.75" 1"
MX1-162A-632 $11.31 $10.46   $9.96 (100pcs.) 24.5" 32 0.75" 1"
MX1-162A-639 $19.31 $18.56   $18.06 (100pcs.) 30.0" 39 0.75" 1"
MX1-162A-648 $15.87 $14.62   $14.62 (100pcs.) 36.0" 48 0.75" 1"
MFHX 10-24T

Sulzer Mixpack

PART#

Individual Price

Quantity 50

Quantity 250

Box Quantity

Overall Length

Number Of Elements

Inside Diameter

Outside Diameter

MX1-MFHX 10-24 $2.63 $2.10 $2.00 $1.79 (900pcs.) 11.6" 24 0.39" 0.55"
MX1-MFHX 10-32 $2.93 $2.34 $2.22 $2.00 (500pcs.) 14.1" 32 0.39" 0.55"
MX1-MFHX 8-32 $2.70 $2.16 $2.05 $1.84 (500pcs.) 11.3" 32 0.31" 0.47"
MX1-MFH 10-24T $2.36 $1.89 $1.80 $1.61 (900pcs.) 11.6" 24 0.39" 0.55"
MX1-MFH 10-32T $3.30 $2.64 $2.51 $2.25 (900pcs.) 14.1" 32 0.39" 0.55"
MX1-MFH 8-32T $2.85 $2.28 $2.17 $1.95 (500pcs.) 11.3" 32 0.31" 0.47"

Other mixers we sell

PART#

Description

Individual Price

Quantity 50

Quantity 250

Box Quantity

Overall Length

Number Of Elements

Inside Diameter

Outside Diameter

MX1-300-026 Quick-disconnect style quadrature mixer $0.66 $0.54 $0.49 $0.43 4.5" 24 0.25" 0.3"
Luer lock tip

Luer Lock Tip

Luer Lock Tips

These tips will thread onto several of the mixers sold above, including the MX1-432, 448, 624, 632, 300-002, 300-006, 300-014, 300-018, & 300-026. They are used to attach a dispensing tip (needle) to the mixer housing for precision metering operations. They can also be attached to some other sizes with the adapters listed below.

luer lock adaptor

Luer Lock Adaptor

Part #

Individual Price

Quantity 50

Quantity 250

Box Quantity

Compatible with

MX12-LA05

$0.40

$0.32

$0.28

$0.23(2000pcs)

400 and 600 series mixers

MX12-LA10

$0.40

$0.32

$0.28

$0.23 (2000pcs)

800 series mixers

For threaded mixer, add -CT to part number and $0.50 each to the price
